Qorvo DW1000 Series UWB Modules

UWB module TC44Q Series

TC44q

TC44Q

TC44Q series UWB module is based on Qorvo DW1000 Ultra Wideband (UWB) transceiver IC, which is self-developed by Tianchi Information. And its package is totally compatible with DWM1000. It integrates antenna, all RF circuitry, power management and clock circuitry in one module. It can be used in TWR(Two Way Ranging) or TDOA location systems to locate assets to a precision of 10 cm to 30cm and supports data rates of up to 6.8 Mbps.

Key Benefits

  1. IEEE 802.15.4-2011 UWB compliant ;

  2. The output power of transmitter can be programmed and controlled;

  3. The data transmission rate is 110kbps, 850kbps, and 6.8Mbps in three modes;

  4. The maximum data packet length is 1023 bytes, which meets the application requirements of high data volume exchange;

  5. Support Band 5/7 RF channel,avoid efficiently 4G/5G signal interference;

  6. High multipath fading immunity;

  7. It has a larger communication range, reducing the additional infrastructure required in RTLS (Real Time Location System);

  8. Support two-way raging and  TDOA positioning.

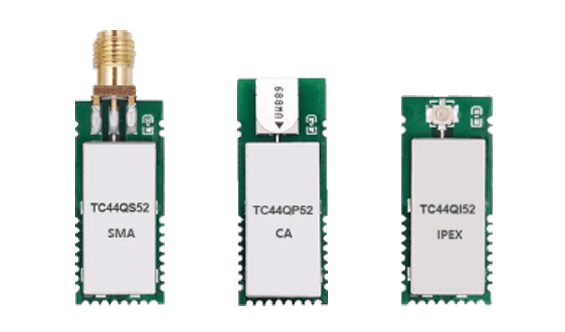

Size:30.0mm*13mm*3.2mm(TC44QI52)
34.0mm*13mm*3.2mm(TC44QP52)
40.0mm*13mm*3.2mm(TC44QS52)
Antenna Interface:IPEX(TC44QI52)
Ceramic antenna(TC44QP52)
SMA(TC44QS52)
Covering radius:1000m @110K
Power supply interface:2.8V~3.6V
Communication Interface:SPI
Core RF:DW1000 CHIP
Working Frequency:6.0G~7.0G
Transmitting Power:-21dbm/Mhz
Position error:10cm~30cm
Range Error10cm~30cm
